If you use our machine you will have about 1/10 the cost of our old machine.

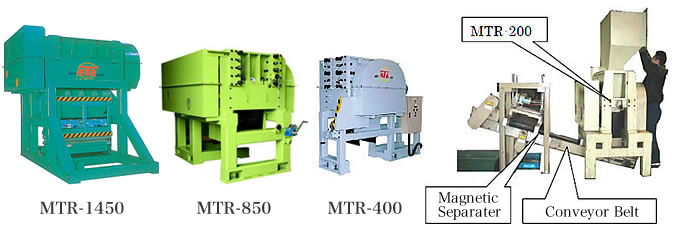

[Whole Structure of Machine]

Our single axis shredder is ideal for separating.
Our machine separates and shreds with very high torque because we adopted strong inerti.

[Rotary Blade]

Various functions such as chop, hammer, rip and shear for a wide variety of materials.
Our rotar has a very wide radius which means it can do its job without the use of a pusher.
We adopted the original clamping method so we can replace each blade individually and easily and with low maintenance cost.
Because of our original blade edge design it is 3X more durable than the conventional blade.

[Stationary Blade]

We can easily adjust the stationary blade.

[Screen]

We can easily replace the screen if and when you want to change sizes of the material pieces.
We can inspect the rotar smoothly because the screen is movable. (MTR-1450)

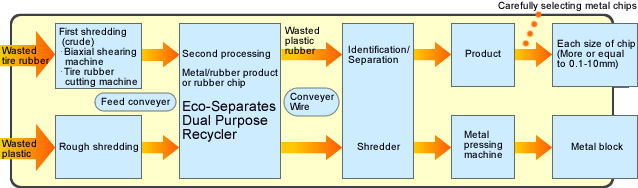

[System Structure]

Processed materials can come out separately from a right and left side.
Separating and processing can be done with our original system design which is compact and low cost.
If the materials get too much for the blade to handle it will automatically stop and reverse direction to release the materials and continue fuction. High torque control can be done with low RPM. (optional)

＊Isolation rate may be lower depending on the form and condition of the product.

＊Processing amount may be greatly different depending on the form, type, grain size and quality of imput materials.

*Dimensions or weight will be changed depending on placement or specification of options.
*Hopper is not included.

• Reverse feature
• Control of RPM with inverter control and electric power saving.
• Input amount control structure with inspection of overload
• Trouble measurement when extraneous materials get included in the mix.

The following things cannot be processed: blockish metal like molding, reinforcing steel or steel board or natural stone.
If you input the following, the lifetime of the blade will be severely shortened: dirt, sand, concrete block, glass, fiber reinforced plastic, etc.

*There are other things that can be shredded but are restricted legally.
*Forms and specs of products may be changed without notice.
